High pressure durable flanged connection globe valve ANSI 150LBS

Name: High pressure durable flanged connection globe valve ANSI 150LBS
Brand: Jieyi
Price: 50 USD

Quality High pressure durable flanged connection globe valve ANSI 150LBS for sale

Brand Name : Jieyi

Model Number : JYCG201ANSI

Certification : ISO9001 GS

Place of Origin : Chian

MOQ : 2 pcs

Price : USD 50 ~ 300 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs/ month

Delivery Time : 5 ~ 8 days

Packaging Details : Carton packaging or Plywood wooden box packaging

Type : Ball Valve, Gate Valves, Float Valves, Swing, Lift, Wafer

Application : General

Temperature of Media : High / Medium / Low / Normal Temperature

Power : Manual

Media : Water, Gas, Oil, etc

Port size : 1/2"-8"

Structure : Lift Type

Product name : Globe Valve

Port : Full-port

Connection : Flange, Welded, Wafer

Standard : DIN, ANSI, JIS, EN

Body, Bonnet : Carbon steel. Stainless Steel 316

Stem : 2Cr13, stainless steel

Gasket : Stainless steel + PTFE + Flexible graphite

Packing : PTFE

OEM : Welcome

Standard or Nonstandard : Standard

Contact Now

High pressure durable flanged connection globe valve ANSI 150LBS

The globe valve is a tool that relies on the pressure of the valve stem to make the sealing surface of the disc and the sealing surface of the valve seat closely fit to prevent the flow of the medium. It is a forced sealing valve and is one of the most widely used valves.

According to the direction of the passage, the globe valve is divided into four types: straight-through globe valve, direct-flow globe valve, angle globe valve and plunger globe valve.

Globe Valve Features

Name	Durable stainless steel flanged globe valve ANSI 150LBS
Model	CG201ANSI
Material	CF8M/CF8/WCB
Size	1/2`` to 12``
Pressure	150LBS
Temperature	-20 ~ 200℃
Whether the standard parts	yes
Characteristic	features simple structure, good design and sealing, easy for maintenance. On and off of stem is of small working stroke, with short stroke time, and reliable cutting action. You don't have to remove the valve chest to replace sealing elements.
selling point	Offer high cycle life

The globe valve, also called the cut-off valve, is one of the most widely used valves. The reason why it is so popular is that the friction between the sealing surfaces is small during the opening and closing process, which is relatively durable, has a low opening height and is easy to manufacture.

Data Sheet

Product Detail

Type	Ball valve, Gate Valves, Float Valves, Swing, Lift, Wafer
Brand Name	Jieyi
Model Number	JYCG201ANSI, DN100
Application	Flow system
Temperature of Media	High/Low/Medium/Normal Temperature
Power	Manual
Media	Water, Gas, Oil,etc
Port Size	1/2'' ~ 8''
Structure	Lift type
Product name	Globe Valve
Connection	Flange / Welded / Wafer
Standard	DIN, ANSI, JIS. EN
Body, Bonnet	Stainless Steel / Carbon steel
Gasket	Stainless steel + PTFE + Flexible graphite
Standard or Nonstandard	Standard
Port	Full-port
Stem	2Cr13, stainless steel

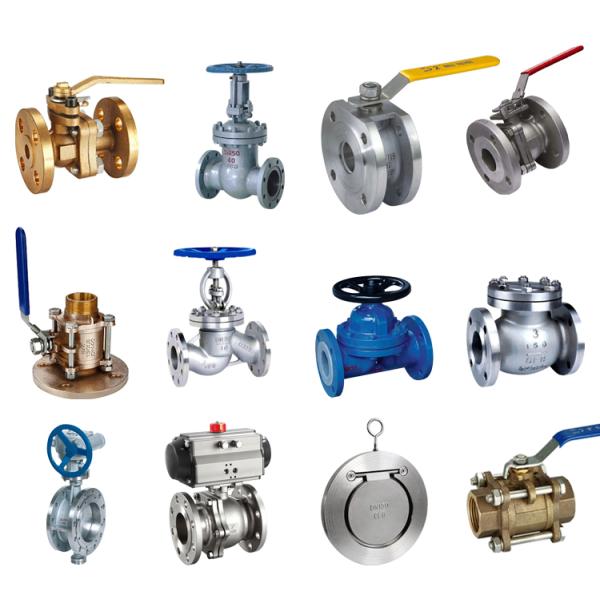

Product Show

High pressure durable flanged connection globe valve ANSI 150LBS

Workshop&Certification High pressure durable flanged connection globe valve ANSI 150LBS

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.But we have our own foreign trade team!

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: General is 100%TT deposit, or 30% advance payment, balance paid before shipment.

Q: Could you specially design and produce for clients?

A: Yes,Of course! We have experienced engineers, we can produce according to your requirements or drawings!

If you have any needs, please feel free to contact us. We can produce according to your samples or drawings, we can also customize the design drawings for you according to your requirements, and then send them to you for confirmation!
